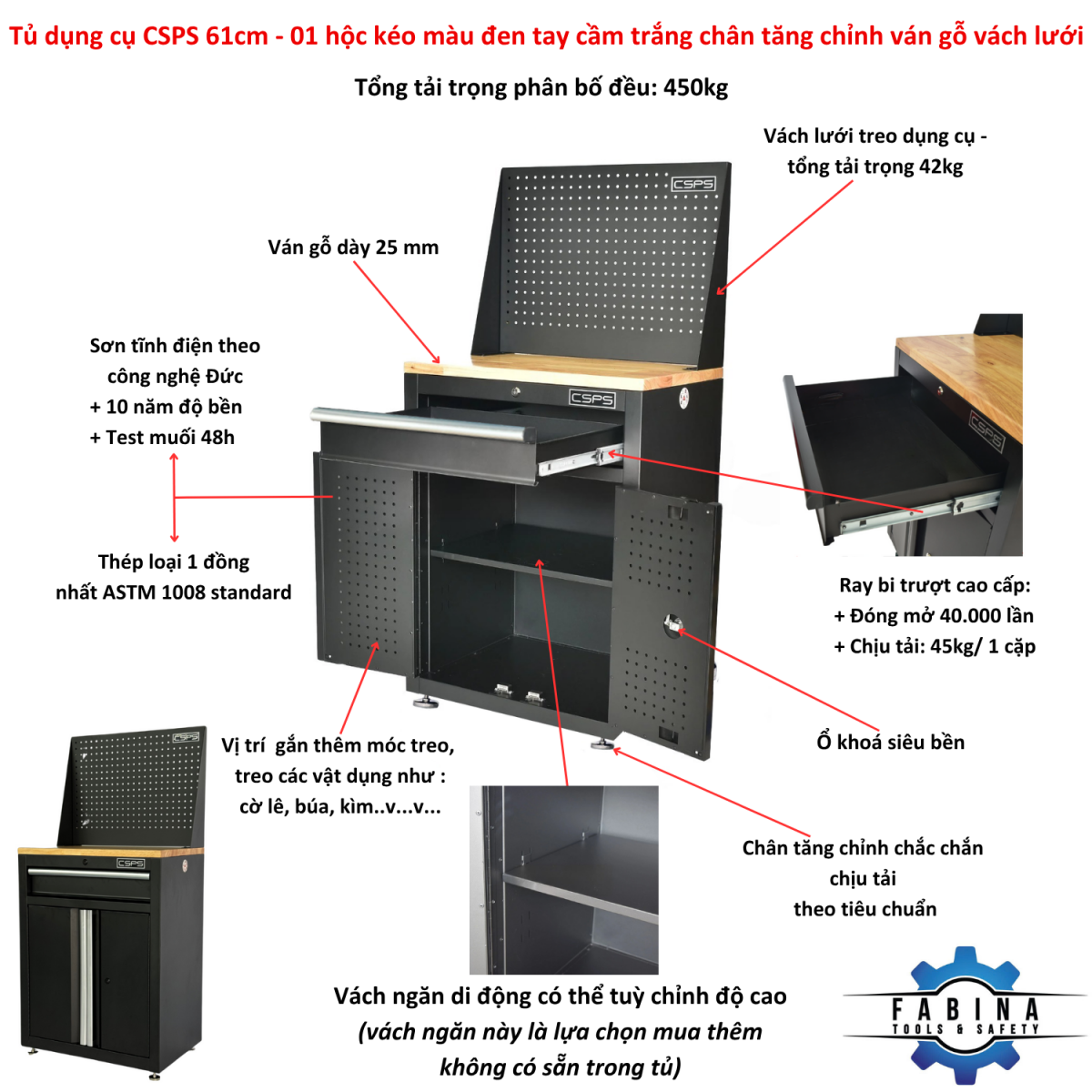

Tool cabinet CSPS 61cm - 01 black drawer with adjustable legs and mesh wall (white handle)
1. GENERAL SPECIFICATIONS
Package dimension: 62cm W × 43cm D × 78.5cm H

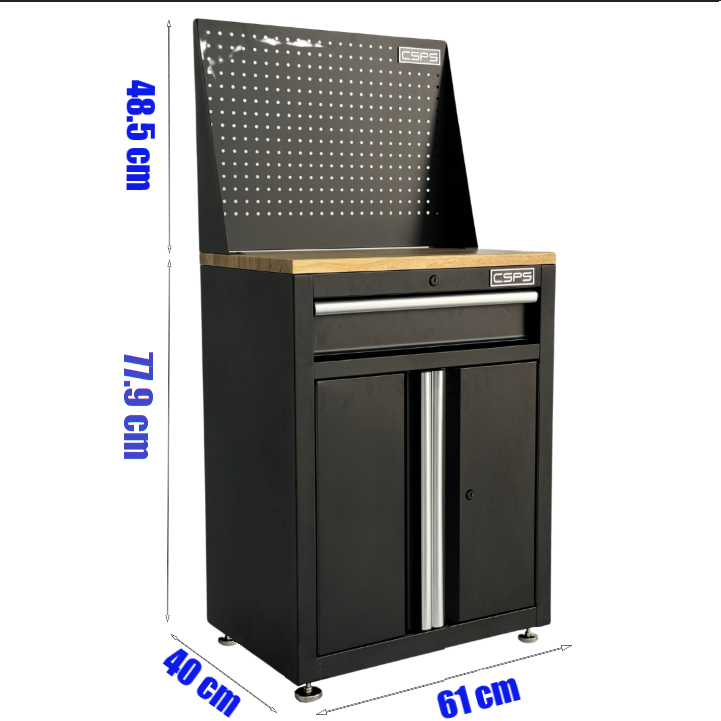

Product dimension: 61cm W x 40cm D x 126.4cm H (Including adjustable legs and mesh wall)
Net weight: 37.5kg
Warranty: 2 years / 2 years.
2. CAPACITY
Overall capacity: 294 kg
Drawers:
+ Drawer: 61cm W x 40cm D x 76cm H.
+ Using 3-layer ball bearing slides.
+ Capacity: 45 kg/drawer.
+ Usage cycle: 40,000 times.
Height adjustable legs:
+ Dimensions: 4.3cm W × 4.3cm D × 4.7 cm H (Including adjustable legs), Length, width and height for 1 leg
3. OTHERS
Coating:
Color:
+ Matt Black
+ Matt Red
Powder coating technalogy.
Coating durability: 10 years.
Lock:
Drawers lock: 01.
Locking force: minimum 45 kg.
4.STANDARDS
Appearance: 16 CFR 1500.48/1500.49 (Scope expanded): sharp point test.
16 CFR 1303: lead-containing paint test.
Coating: ASTM B117 (mod.) & ASTM D610 (mod.): corrosion test.
ASTM D3363 (mod.): hardness test.
ASTM D2794: impact test.
ASTM D4752: Solvent resistance rub test.
ASTM D3359: Cross-cut tape test.
Steel: ASTM A1008: standard specification for steel.
Function: ANSI/BIFMA X 5.9: Storage unit test – Static load loading; dynamic loading; durability testing.
