Wokin 171-Piece Tool Set for CSPS 76cm Cabinet

Wokin 171-Piece Tool Set for CSPS 76cm Cabinet – the perfect choice for anyone seeking a versatile and comprehensive toolkit.
With 188 pieces, this set allows you to easily perform repair, assembly, and maintenance tasks without hiring external services — saving significant time and cost.
Regular use of tools also helps you improve your technical skills, becoming more proficient and confident in handling mechanical or DIY projects.

Owning a complete set of essential tools enables you to handle any situation — from minor incidents to complex jobs.
More than just for repair work, this tool set is also an indispensable companion for DIY enthusiasts, makers, and hobbyists.
Wokin 171-Piece Tool Set for CSPS 76cm Cabinet – the all-in-one solution for professionals and creative minds.

TECHNICAL SPECIFICATIONS

1. GENERAL SPECS

Drawer 1:

• 18 pcs 1/2" 6-point sockets: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32mm

• 14 pcs 1/2" deep 6-point sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21mm

• 2 pcs extension bars 1/2": 125mm, 255mm

• 2 pcs spark plug sockets 1/2": 16mm, 21mm

• 1 pc 3-way adaptor 1/2"

• 1 pc universal joint 1/2"

• 12 pcs 1/4" 6-point sockets: 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm

• 5 pcs 1/4" deep sockets: 8, 10, 11, 12, 13mm

• 2 pcs extension bars 1/4": 50mm, 100mm

• 1 pc universal joint 1/4"

• 1 pc square handle 1/4"

• 1 pc flexible extension bar 1/4": 150mm

• 1 pc sliding T-bar 1/4": 110mm

• 2 pcs ratchet handles: 1/2" and 1/4"

• 4 pcs L-type wrenches: 10mm, 13mm, 17mm, 19mm

• 1 set of 9 ball-end hex keys

• 1 set of 9 star-end hex keys

Drawer 2:

• 1 pc internal circlip plier bent tip 7"/180mm

• 1 pc external circlip plier bent tip 7"/180mm

• 1 pc internal circlip plier straight tip 7"/180mm

• 1 pc external circlip plier straight tip 7"/180mm

3 pcs cold chisels:

• Flat chisel: 13x10x152mm

• Triangle chisel: 5x10x152mm

• Center punch: 2x10x152mm

Hammers:

• 1 pc machinist hammer wooden handle 300g

• 1 pc plastic hammer wooden handle 40mm

Bits (10mm drive) – 38 pcs total:

19 pcs 30mm bits including:

• Hex (H): H4, H5, H6, H7, H8, H10, H12

• Ribe (M): M5, M6, M8, M10, M12

• Torx (T): T20, T25, T30, T40, T45, T50, T55

19 pcs 75mm bits (same types as above):

• Hex (H): H4, H5, H6, H7, H8, H10, H12

• Ribe (M): M5, M6, M8, M10, M12

• Torx (T): T20, T25, T30, T40, T45, T50, T55

• 1 pc 1/2"x10mm bit adaptor

Digital Multimeter:
Standard: IEC-61010 CAT III 300V

• LCD Display 3½ digits, max reading 1999

• Large LCD screen

Measurement ranges:

• DC Voltage: 200m/2/20/200/300V

• AC Voltage: 2/20/200/300V

• DC Current: 200μ/2m/20m/200m/10A

• AC Current: 2m/20m/200m/10A

• Resistance: 200/2k/20k/200k/2M/20MΩ

• Battery Test: 1.5V, 9V

• Diode Test: 2.8V/1mA

• Test leads: bendable red & black plugs

• Battery: 6F22 (9V) included

• 1 pc air blow gun: hose length 25mm; air outlet G1/4"

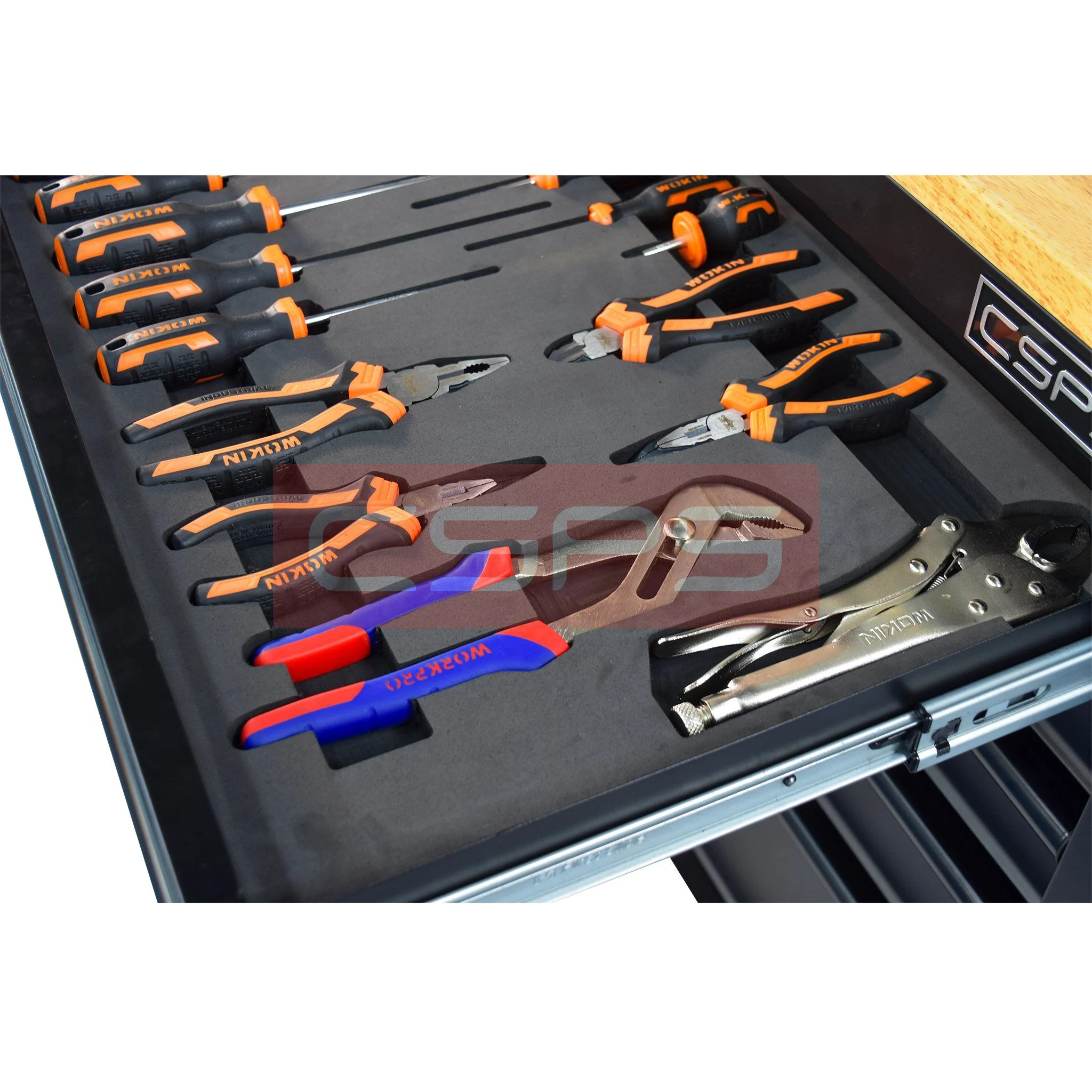

Drawer 3:

• 1 pc combination plier 7"/180mm

• 1 pc diagonal cutting plier 6"/160mm

• 1 pc long nose plier 6"/160mm

• 1 pc bent nose plier 6"/160mm

• 7 pcs flat screwdrivers: 3x75mm, 5.5x100mm, 5.5x150mm, 6.5x38mm, 6.5x100mm, 6.5x150mm, 8x150mm

• 7 pcs Phillips screwdrivers: PH0x75mm, PH1x75mm, PH1x100mm, PH2x38mm, PH2x100mm, PH2x150mm, PH3x150mm

• 1 pc water pump plier 10"/250mm

• 1 pc curved jaw locking plier 10”

Drawer 4:

• 19 pcs combination wrenches: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27mm

• 7 pcs double ring wrenches: 6x7mm, 8x9mm, 10x11mm, 12x13mm, 14x15mm, 16x17mm, 18x19mm

• 1 pc tire inflator gun with gauge: hose length 40cm; air inlet G1/4"

• 5 pcs pegboard hooks

Authorized Distributor Certificate
